Feature and advantages:
·The tool body is made of high-quality tool steel that has undergone special heat treatment, with the entire surface treated by coating, which is wear-resistant and rust-proof.
·HB type side-fixed tool holder and sturdy flanged tool body to reduce vibration or jitter

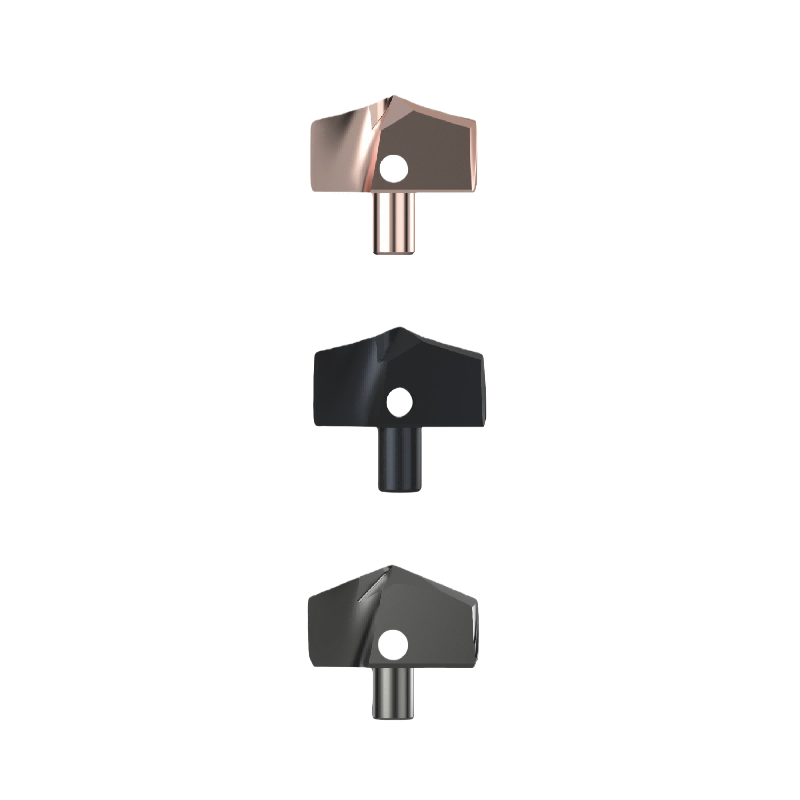

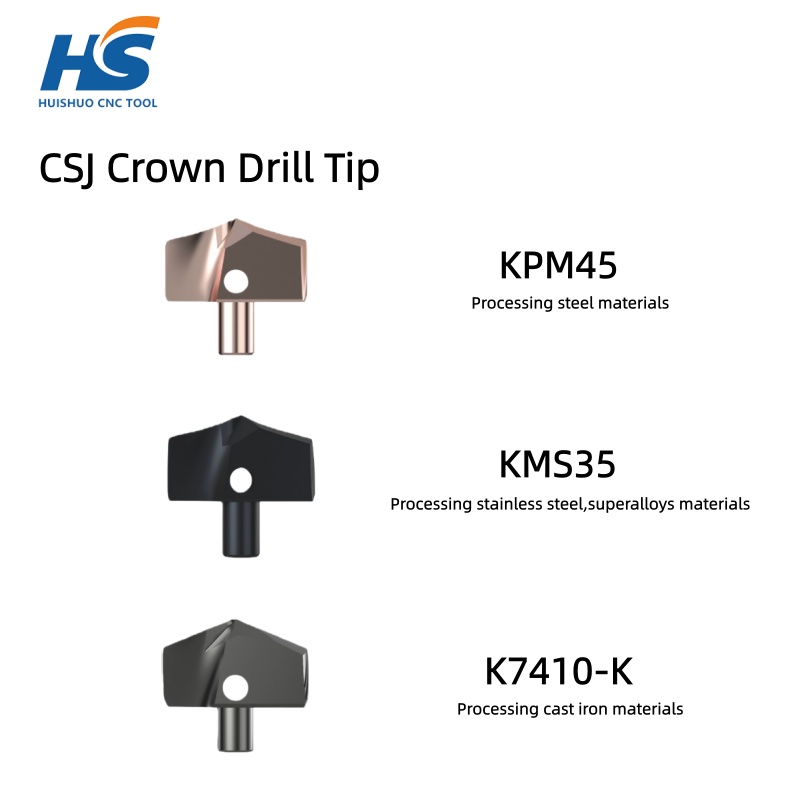

·Three types of channel-shaped solid carbide drill tips are suitable for processing materials such as carbon steel, cast iron, stainless steel, high-temperature alloys, and aluminum alloys.
·The drill tip adopts a side-fixing locking screw, making it more convenient to replace the drill tip.

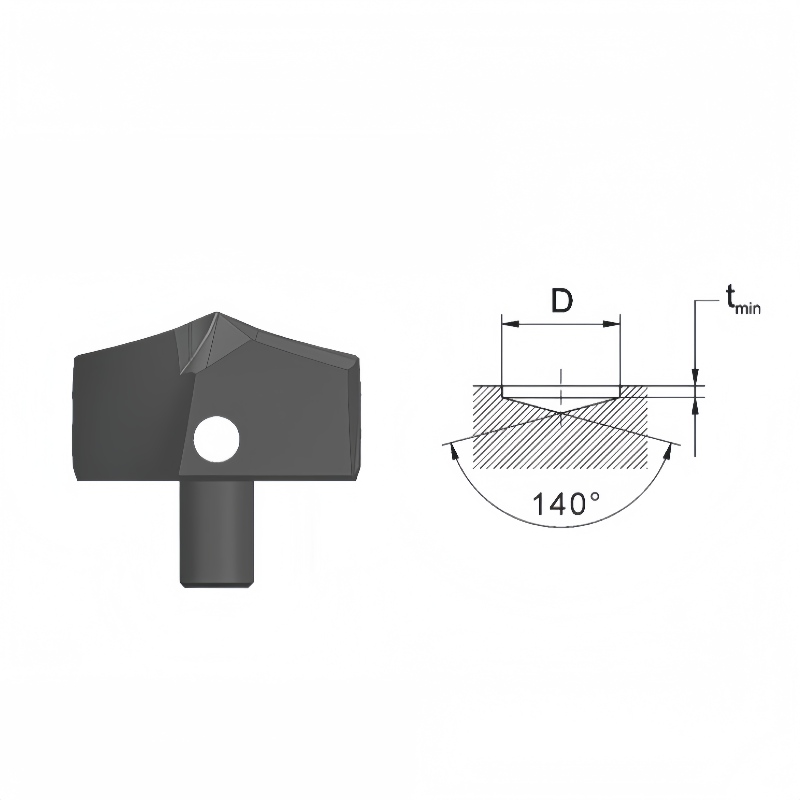

·The diameter range is ⌀8-39.99mm(0.315 - 1.57 in), and the processing depth is 3D, 5D, 7D, 10D and 12D. Other specifications can be customized non-standard.
·The internal cooling with threaded interface design facilitates the connection of high-pressure coolant externally and ensures smooth chip removal.
Specifications:
| NO. | Dill bit dameter | Screw model | Wench |
| 1 | 8.00-8.99 |
| M2.2*7.0 D2.9 60° T7 | T7 |
| 2 | 9.00-9.99 |
| M2.2*8.0 D2.9 60° T7 | T7 |
| 3 | 10.00-11.99 |
| M2.2*9.0 D2.9 60° T7 | T7 |
| 4 | 12.00-13.99 |
| M2.2*10.5 D2.9 60° T7 | T7 |
| 5 | 14.00-15.99 |
| M2.5*12.0 D3.5 60° T8 | T8 |
| 6 | 16.00-17.99 |
| M2.5*14.5 D3.5 60° T8 | T8 |
| 7 | 18.00-19.99 |
| M3.0*16.5 D4.2 60° T10 | T10 |
| 8 | 20.00-21.99 |
| M3.0*18.5 D4.2 60° T10 | T10 |
| 9 | 22.00-23.99 |
| M3.0*20.5 D4.2 60° T10 | T10 |
| 10 | 24.00-25.99 |
| M4.0*22.0 D5.6 60° T15 | T15 |
| 11 | 26.00-27.99 |
| M4.0*24.0 D5.6 60° T15 | T15 |
| 12 | 28.00-29.99 |
| M4.0*26.0 D5.6 60° T15 | T15 |
| 13 | 30.00-31.99 |
| M5.0*28.0 D6.7 60° T20 | T20 |
| 14 | 32.00-35.99 |
| M5.0*30.0 D6.7 60° T20 | T20 |
| 15 | 36.00-39.99 |
| M5.0*34.0 D6.7 60° T20 | T20 |
