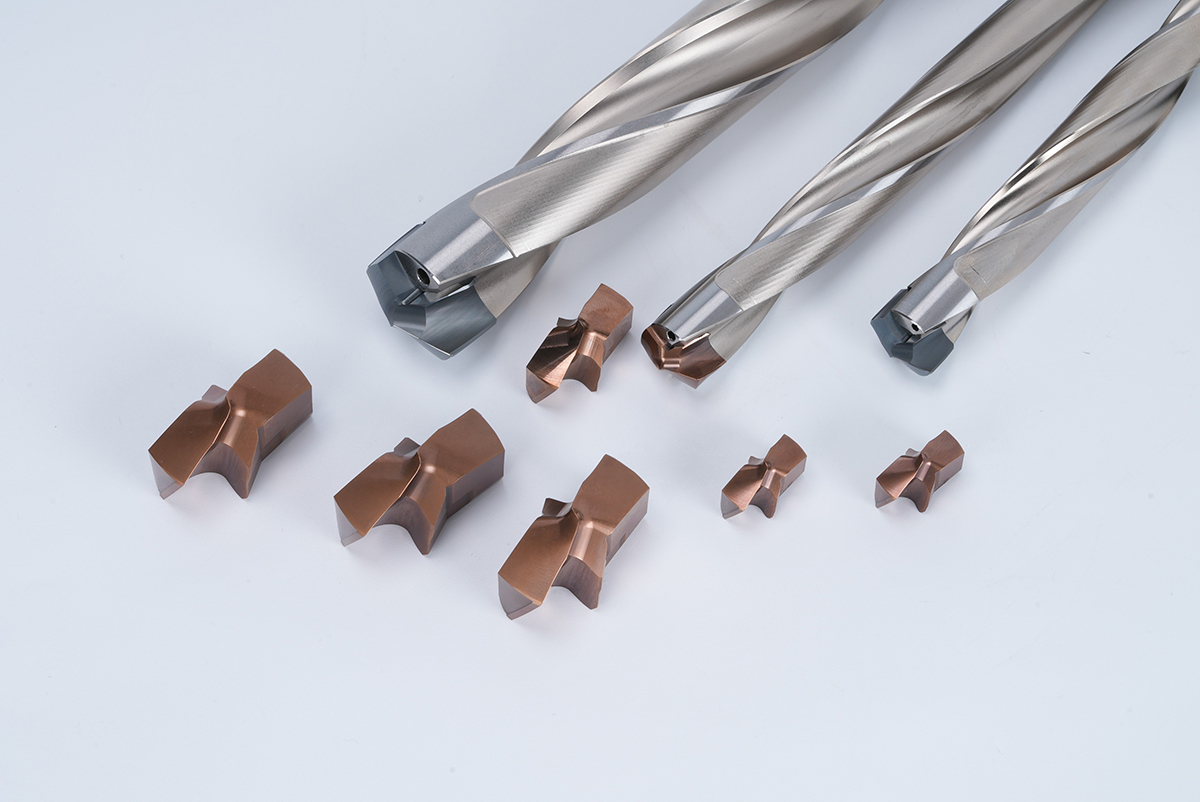

KS Exchangeable Head Drill

The KS Exchangeable Head Drill is a new type of replaceable-head drill bit launched by Chuanshanjia. It features a H13 material body and a rear-pull design. The standard model has a diameter ranging from D12.5 to D52. The drill rod has diameters of 1.5/3/5/7/8/10/12D. It is widely used in construction machinery, heat exchanger, energy, etc. (such as return support, tube plate, wind power, etc.). The modular drill handle offers better economic efficiency and versatility.

Product Features:

1. The KS crown diamond module drill bit adopts a replaceable drill tip structure, making it easy to replace the drill tip.

2. This product has a very sturdy tool holder, and the positioning surface is not easily worn, which can extend the replacement frequency of hard alloy drill tips.

3. The five positioning surfaces are fitted at the same time, and the drilling tip is positioned accurately repeatedly, which greatly improves the service life of the drilling tip and the feed rate.

4. The performance is very reliable, with an efficiency improvement of 3-5 times compared to U-drills. The aperture tolerance can reach +0.03mm, and the drilling depth of standard products can reach 12 times the diameter. The drill tip diameter range is 12.5-52 mm, and various drill tip materials and types are available for selection.

5. The blade can be repaired and ground, which saves more usage costs.

6. Non-standard specifications can be customized service.
